Product Introduction:
In industrial environments such as workshops with variable frequency drives (VFDs), electromagnetic interference (EMI) is continuously present. This interference can distort control signals, leading to system malfunctions such as unexpected shutdowns, false triggering, or operational errors. Our Screened control cable is designed specifically to reduce interference-related failures in control systems. It incorporates a high-density metallic screening layer to ensure signal integrity in electrically noisy environments.
Send Inquiry
Description
Technical Parameters

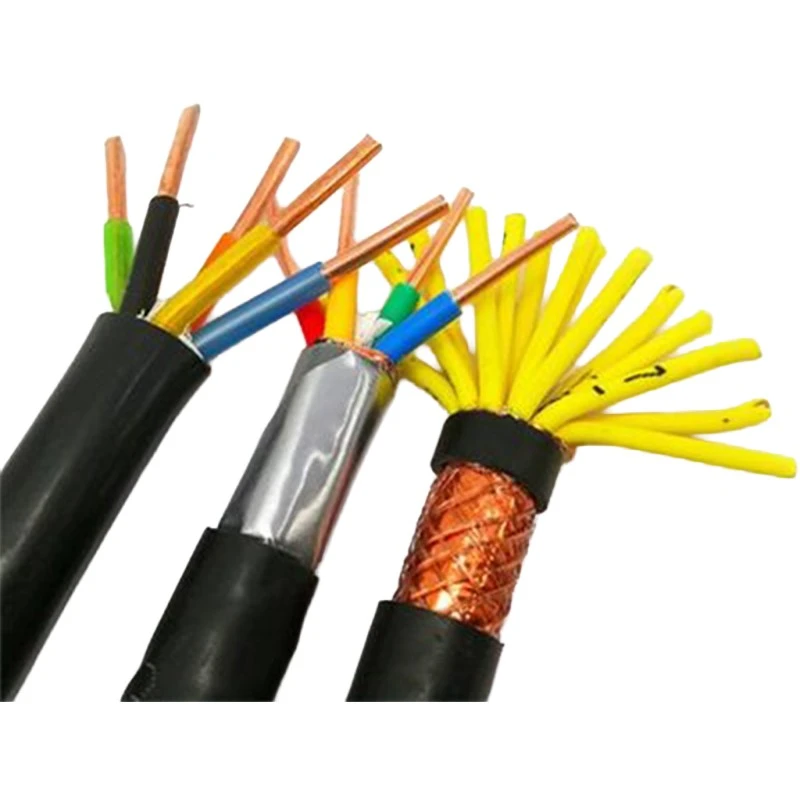

One Cable for Multiple Control Signals


Industrial equipment often requires multiple control signals to operate different functions simultaneously. Each signal must remain electrically independent and stable to ensure reliable system performance.

Our Multi conductor control cable is designed for this purpose. It integrates 2 to 61 cores within a single cable structure, allowing multiple control signals to be transmitted through one unified solution. Compared with multiple single-core or individual twisted-pair cables, this design simplifies wiring layout, reduces installation space requirements in cable trays, and minimizes potential failure points in the system.

t047b5f283eae87a867

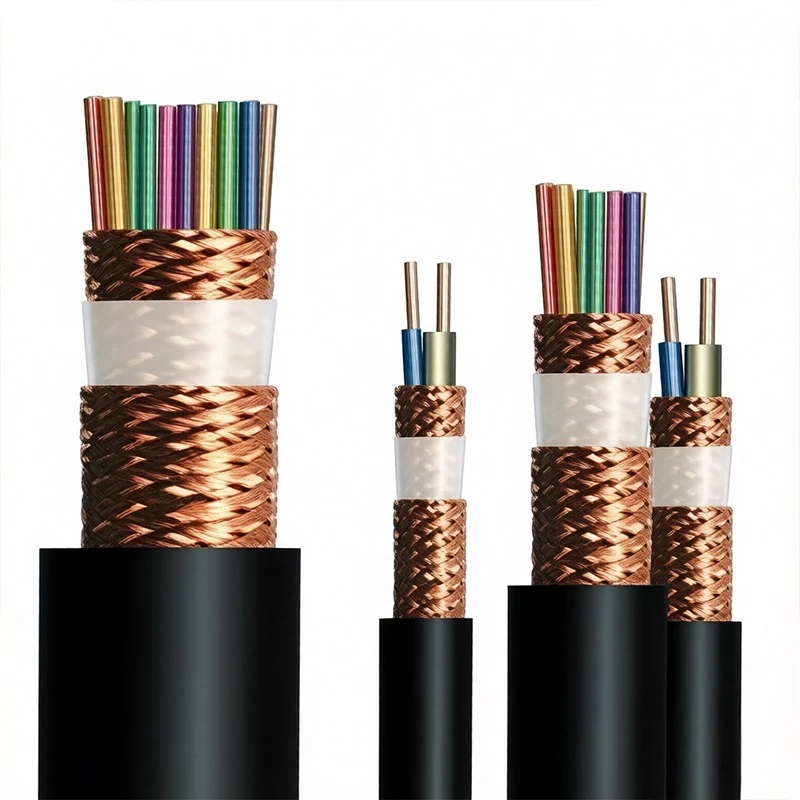

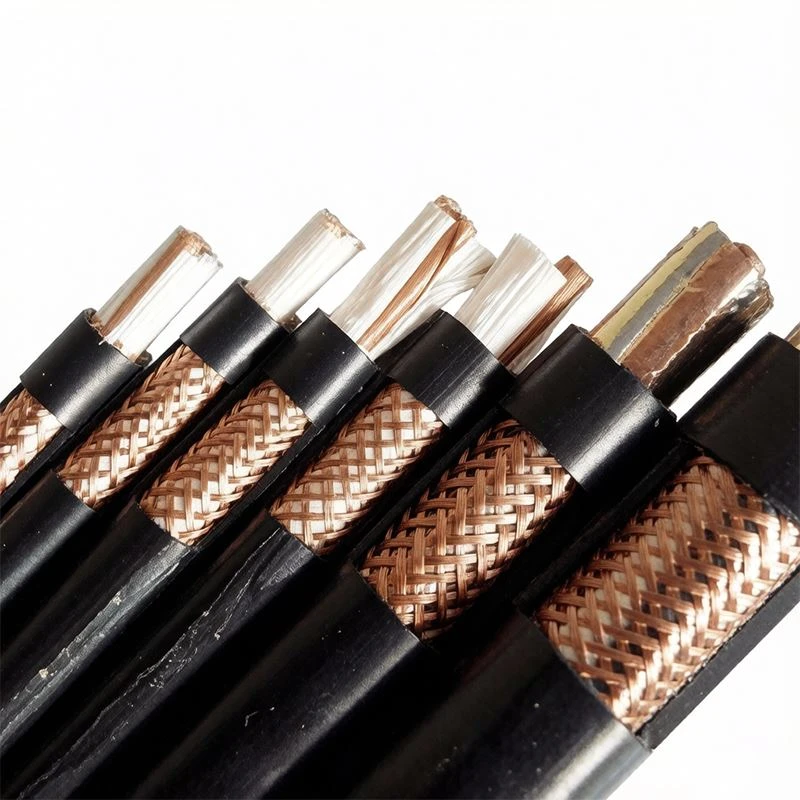

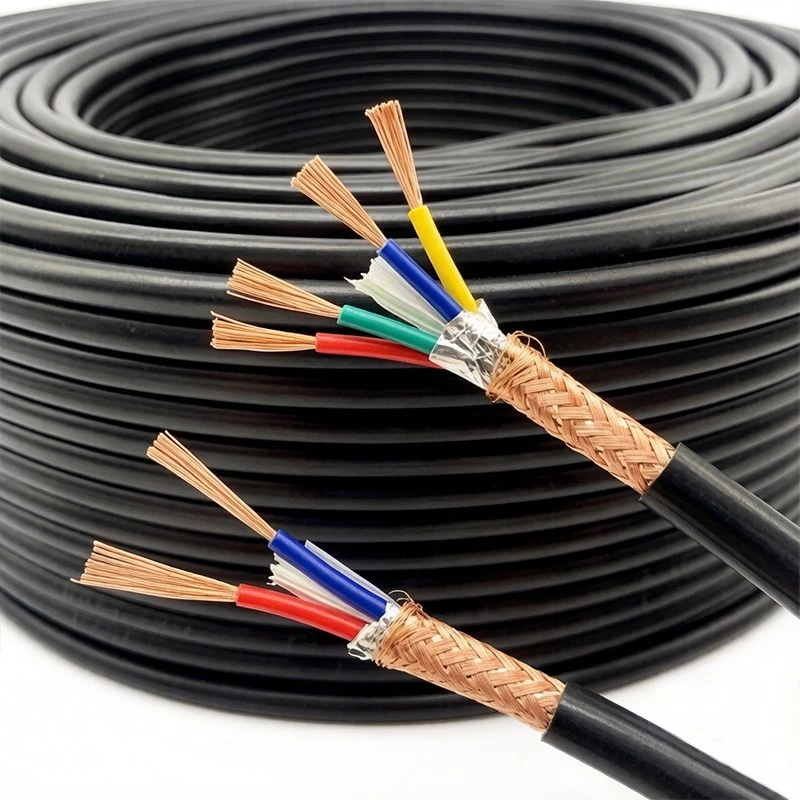

High-Density Copper Braid Screening Structure



t0485465580bf636d5f



The cable uses a tinned copper braid screen with coverage ≥85%, forming a continuous conductive barrier around the insulated cores. This shielding layer effectively attenuates both high-frequency and low-frequency electromagnetic interference by absorbing and dissipating external electromagnetic energy.

Shielding performance is directly dependent on braid density and structural uniformity. During production, strict control is applied to braiding angle, tension, and coverage to ensure consistent screening effectiveness without gaps or broken strands.

The outer jacket is made of flame-retardant PVC with additional resistance to oil, abrasion, and chemical exposure. The conductor is high-purity oxygen-free copper, available in both solid and stranded configurations. Solid conductors are recommended for fixed installations, while stranded conductors are suitable for applications with light mechanical movement.

Stable Manufacturing and Industrial Compliance


Our Screened control cable is manufactured in accordance with GB/T 9330 and IEC 60227 standards and complies with CE and RoHS requirements. Common models such as KVVP, KVVRP, and DJVP are available from stock.

We support customized core configurations and conductor cross-sections to meet different system requirements. For export projects, full technical documentation is provided, including test reports and shielding performance data. Packaging is designed for moisture protection and mechanical resistance during long-distance transportation.

t0467e0540c76bc6de5



Key Specifications



Parameter

Specification

Common Models

KVVP, KVVRP, DJVP

Conductor

High-Purity Oxygen-Free Copper (Solid / Stranded)

Shield Material

Tinned Copper Braid

Shield Coverage

≥85%

Jacket Material

Flame-Retardant PVC (Oil & Abrasion Resistant)



Frequently Asked Questions



Q: What is the recommended method for grounding the shield?

A: The standard industrial practice is single-point grounding at the signal receiving end (e.g., PLC or DCS cabinet). The opposite end of the shield should remain unconnected to avoid ground loop currents. In environments with severe electromagnetic interference, double-ended grounding may be used, provided that the ground potential difference between both ends is minimal. Proper grounding design should be based on the overall system layout and installation conditions.

Q: Do you offer pricing advantages for bulk orders?

A: Yes. As a factory-direct manufacturer, we provide competitive pricing without intermediary markups. Screened cables involve additional manufacturing steps due to the braiding process; however, unit cost decreases significantly with volume. Pricing tiers are available for different order quantities, and larger volumes receive more favorable rates.
