Industrial equipment often requires multiple control signals to operate different functions simultaneously. Each signal must remain electrically independent and stable to ensure reliable system performance.

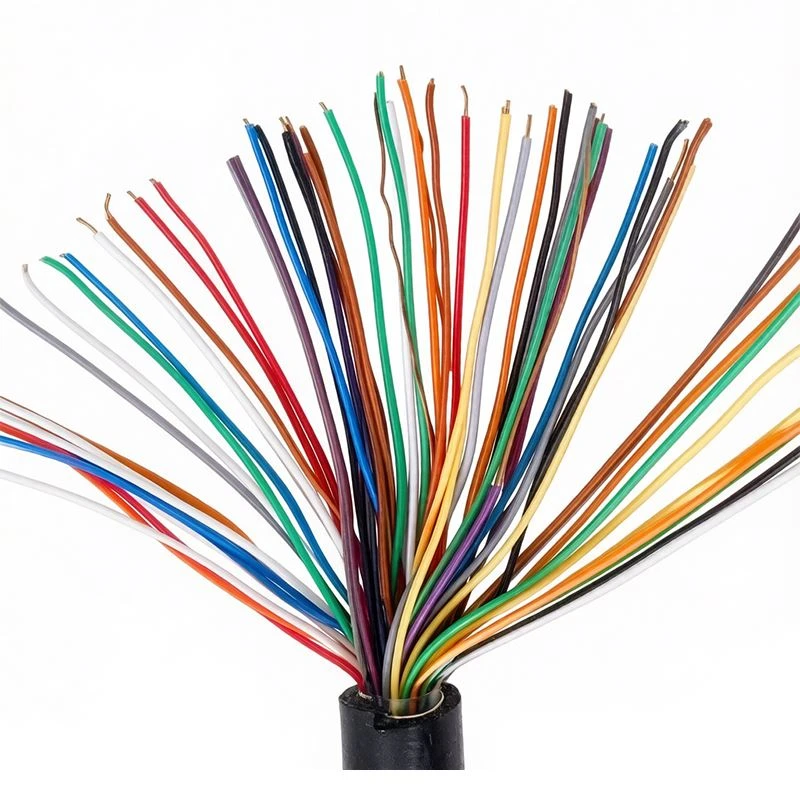

Our Multi conductor control cable is designed for this purpose. It integrates 2 to 61 cores within a single cable structure, allowing multiple control signals to be transmitted through one unified solution. Compared with multiple single-core or individual twisted-pair cables, this design simplifies wiring layout, reduces installation space requirements in cable trays, and minimizes potential failure points in the system.
Low Crosstalk Between Individual Cores
Each core is individually insulated to ensure electrical separation and minimize signal interference. The conductor is made of high-purity oxygen-free copper, providing uniform resistance and stable conductivity for consistent signal transmission.

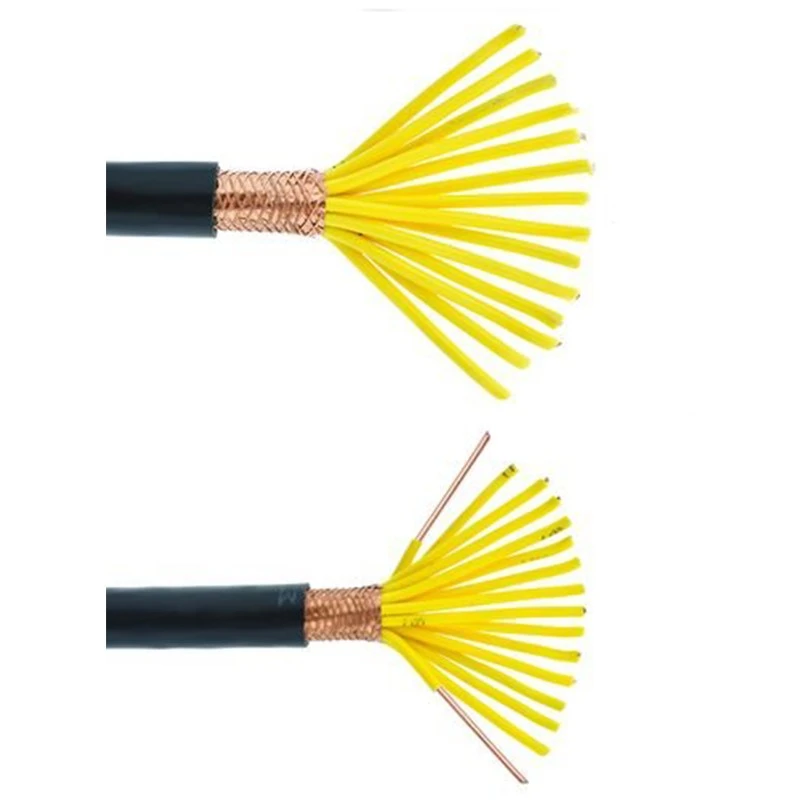

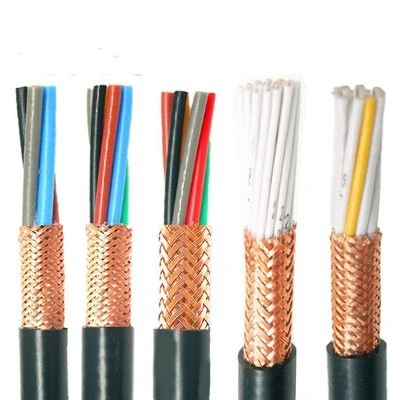

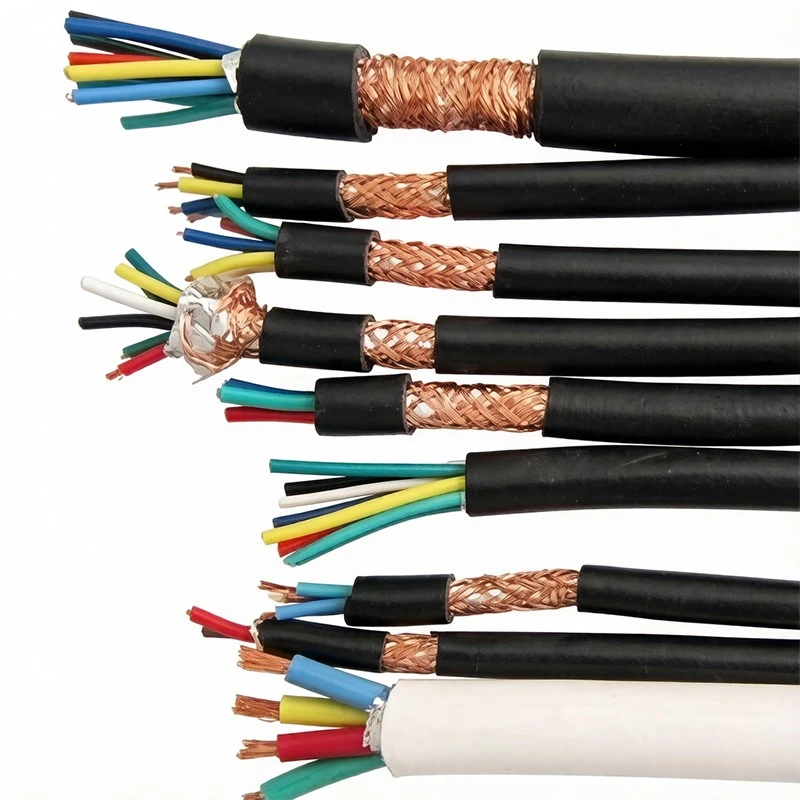

The insulation material is high-quality PVC or XLPE, offering strong dielectric strength and reliable isolation between adjacent cores. Both shielded and unshielded configurations are available. The shielded version uses a tinned copper braid with coverage ≥85%, providing effective protection against electromagnetic interference in environments with VFDs and high-voltage equipment.
This cable is manufactured in compliance with GB/T 9330 and IEC 60227 standards and is certified to CE and RoHS requirements. Common models such as KVV, KVVP, KVVR, and KVVRP are available from stock.

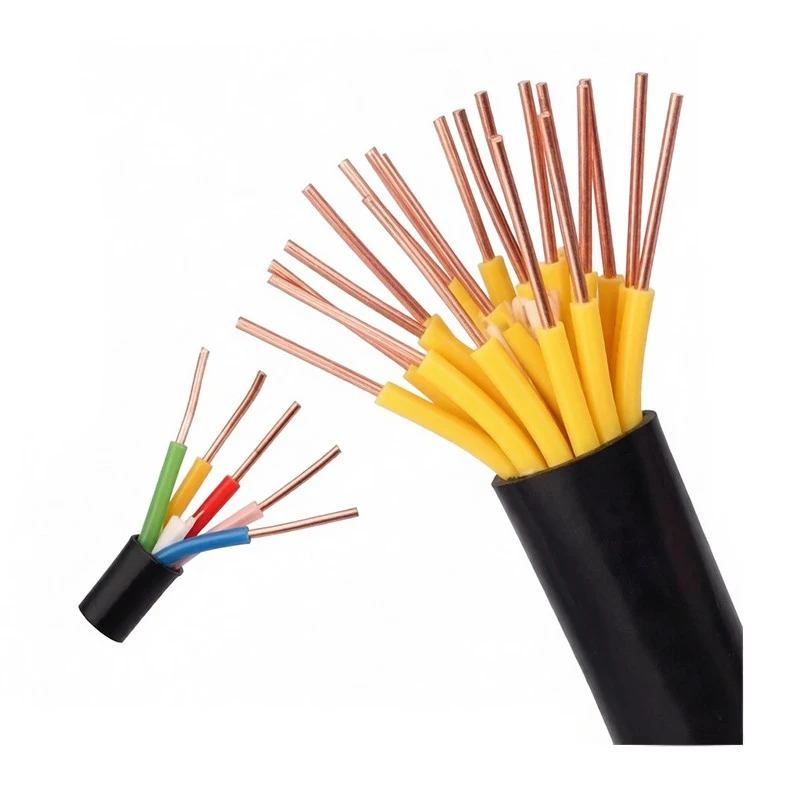

The product range covers 2 to 61 cores and conductor cross-sections from 0.35mm² to 10mm². Both solid and stranded conductor structures are available. Solid conductors are recommended for fixed installations, while stranded conductors are suitable for light movement or vibration environments.
For export projects, we provide full technical documentation, including test reports and customs clearance documents. Packaging is designed with moisture-proof and impact-resistant protection for long-distance transportation.
Key Specifications
|
Parameter |
Specification |
|
Common Models |
KVV, KVVP, KVVR, KVVRP |
|
Conductor |
High-Purity Oxygen-Free Copper (Solid / Stranded) |
|
Core Count |
2 to 61 cores |
|
Shielding Structure |
Tinned Copper Braid (Optional, ≥85% coverage) |
|
Rated Voltage |
300/500V |
