Power Delivery in Tight Spaces

In automation equipment, round power cables often create installation challenges. They take up excessive space, tend to tangle after repeated bending, and may get caught in cable guides.

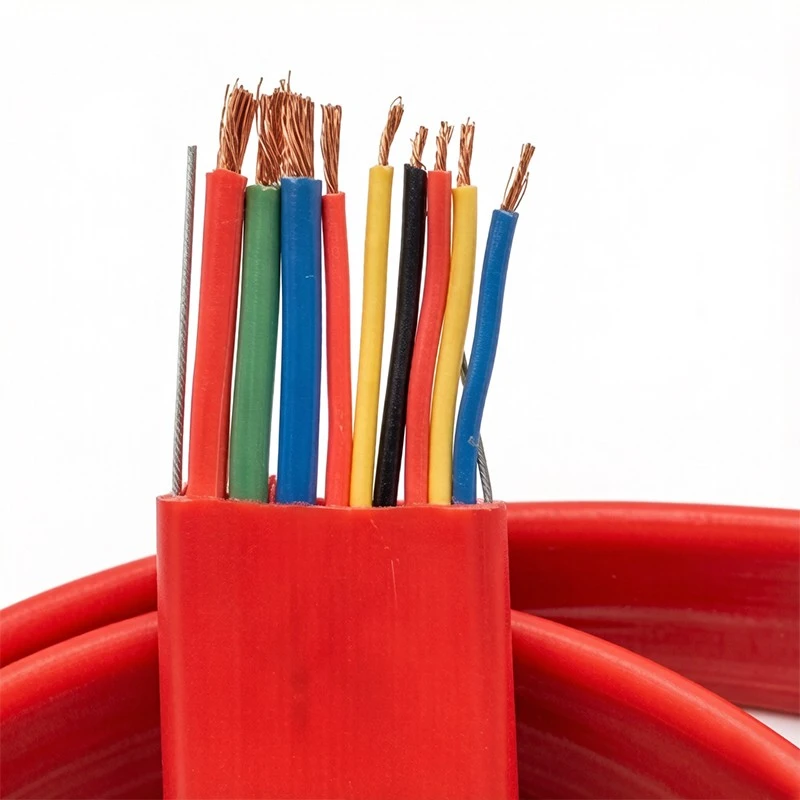

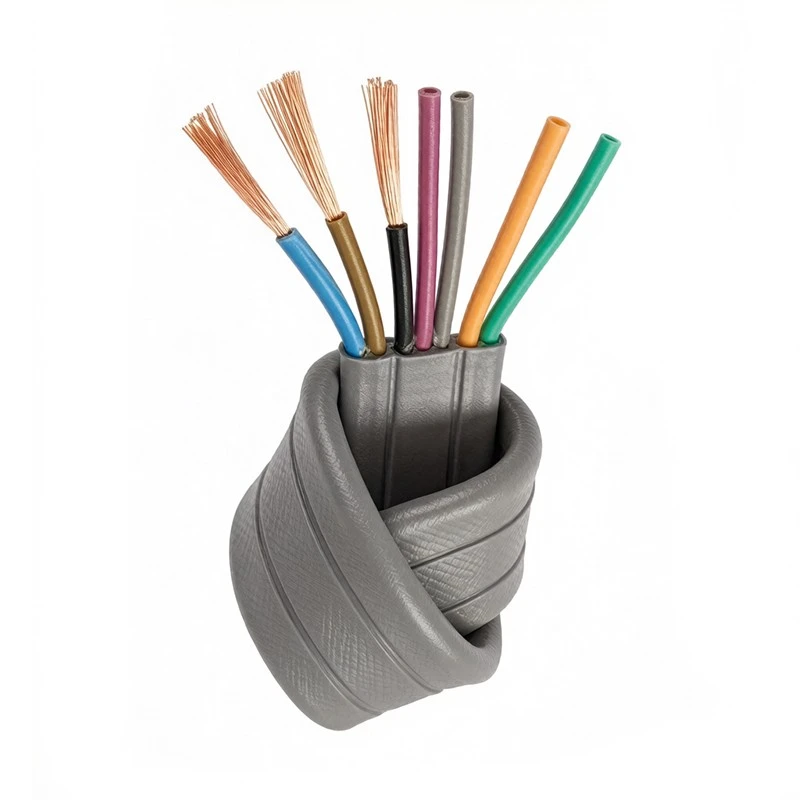

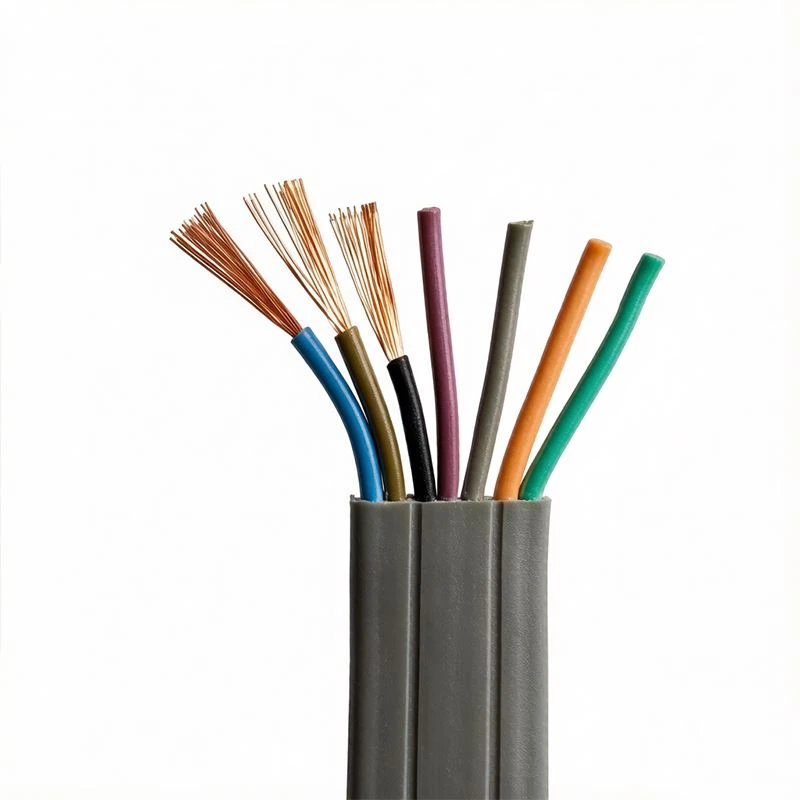

Our Ribbon power cable is designed to solve these issues. It arranges large power conductors side by side in a flat plane, significantly reducing installation height and providing more flexible routing options in compact modern equipment.

t042fde436e7d471a04

Full Power Capacity Preserved

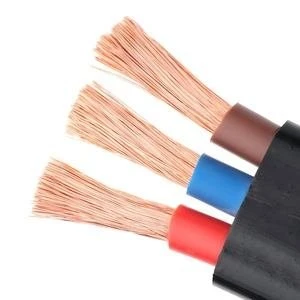

Power transmission performance is not compromised. The conductor uses high-purity oxygen-free copper with excellent conductivity and low heat generation.

Ribbon power cables with larger cross-sections can carry the same current as equivalent round cables of the same specification. They support continuous high-current operation while keeping temperature rise within standard limits.

The insulation material provides high dielectric strength, preventing breakdown in densely packed wiring systems. The outer jacket is thick and abrasion-resistant, offering protection against mechanical wear and stretching.

The shielded version uses a tinned copper braid, effectively reducing electromagnetic emissions generated during high-current transmission.

Mature Process for Large Conductors

We have mature manufacturing processes for large-conductor stranding and insulation, ensuring stable and safe performance under high-current conditions.

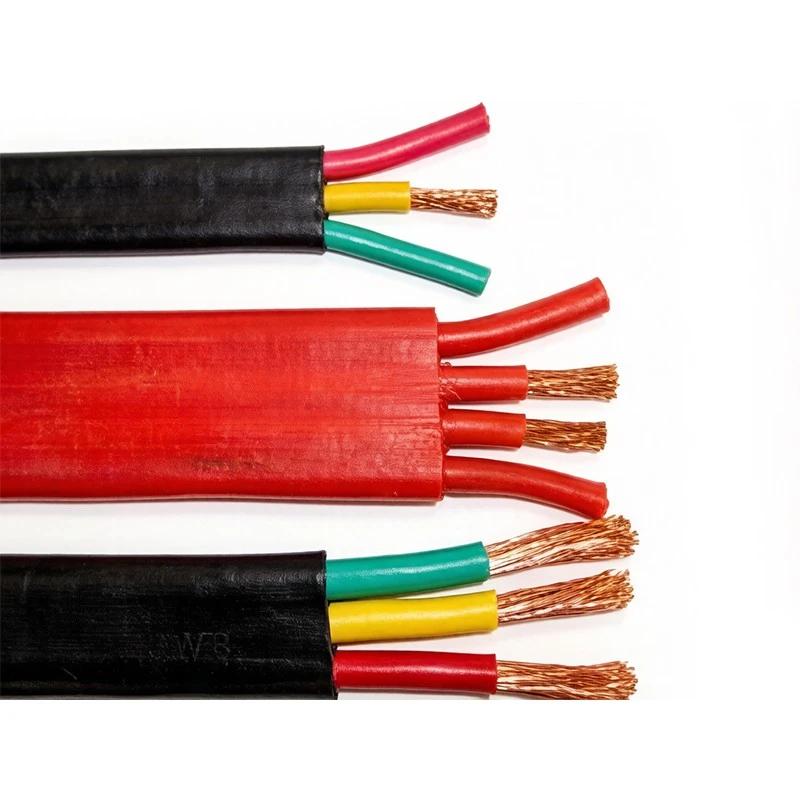

Our products comply with GB/T 9330 and IEC 60227 standards and are certified with CE and RoHS. Common models such as flat power flex, high-flex flat power, flame-retardant flat power, and shielded flat power are available in stock.

Cross-sections range from 0.35mm² to 10mm². Width and thickness can be fully customized according to application requirements.

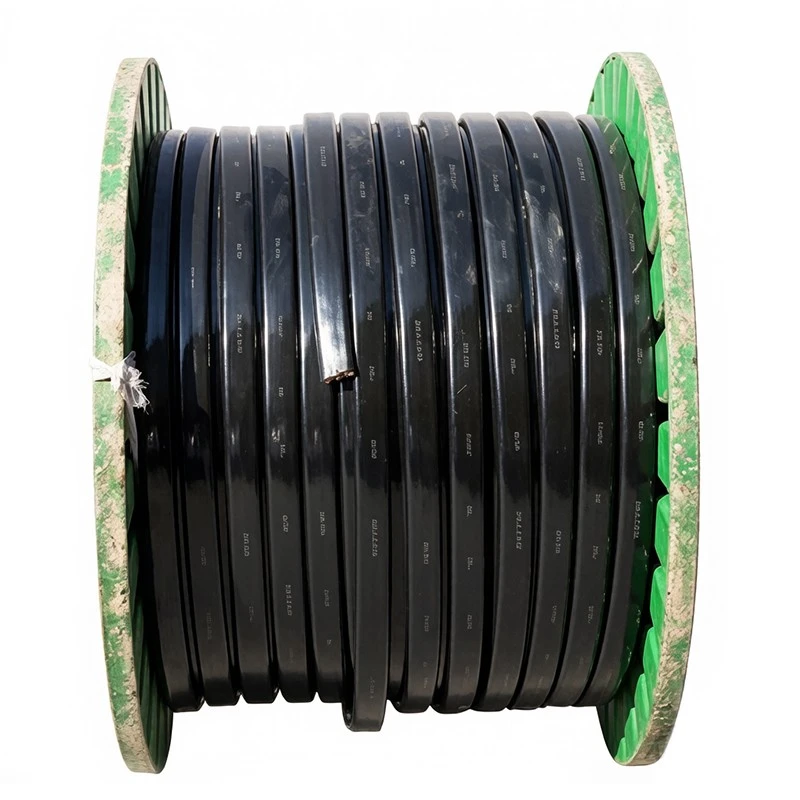

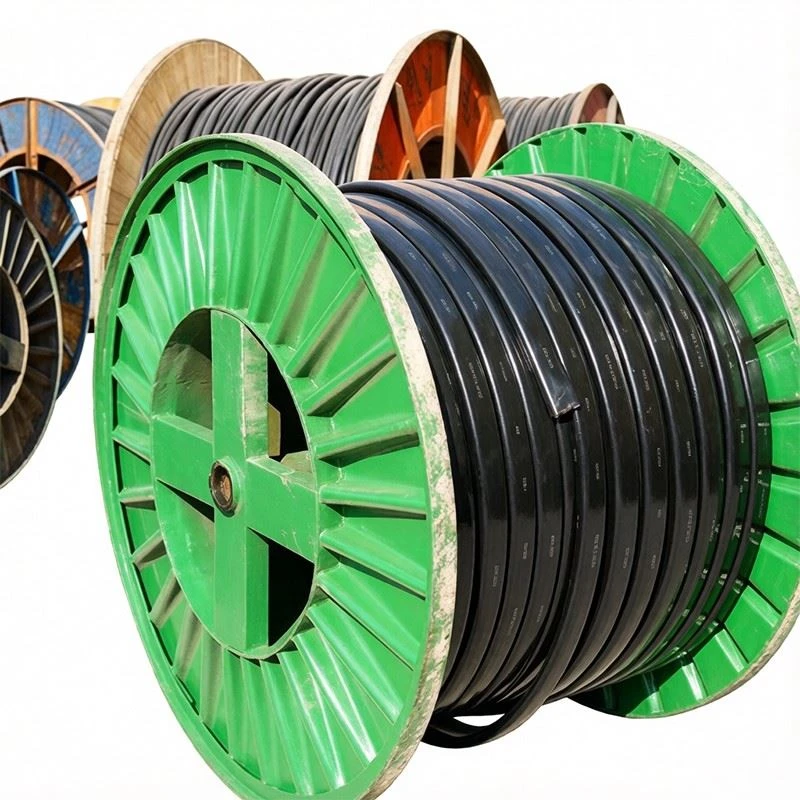

For export orders, we provide complete test reports and customs documentation. All products are packed in moisture-proof and shock-resistant packaging.

Key Specifications

Parameter	Specification
Common Models	Flat power flex, High-flex flat power, Flame-retardant flat power
Conductor	High-purity OFC (high-current design)
Cross-section	0.35mm² – 10mm²
Jacket Material	One-piece flat reinforced abrasion-resistant jacket
Rated Voltage	300/500V, 0.6/1kV

Frequently Asked Questions

Q: How much current can Ribbon power cable carry?

A: Current capacity depends on conductor cross-section, installation method, and ambient temperature.
For example, a 2.5mm² conductor in free air at room temperature typically carries around 25A under safe operating conditions.
We verify current capacity through resistance and temperature-rise testing. If you require precise current ratings, we can provide a detailed current-carrying table based on your exact specification. Please share your load power and installation environment, and we will recommend the appropriate cross-section.

Q: Are your payment terms flexible for large orders?

A: Our standard terms are 30% deposit and 70% balance before shipment.
For large-volume orders or long-term cooperation, we can offer flexible arrangements such as adjusted deposit ratios or letter of credit (LC) terms.
We accept both RMB and USD. As a factory-direct supplier, we maintain competitive pricing for large engineering projects and welcome long-term cooperation.
