Fire Safety Is Our First Priority

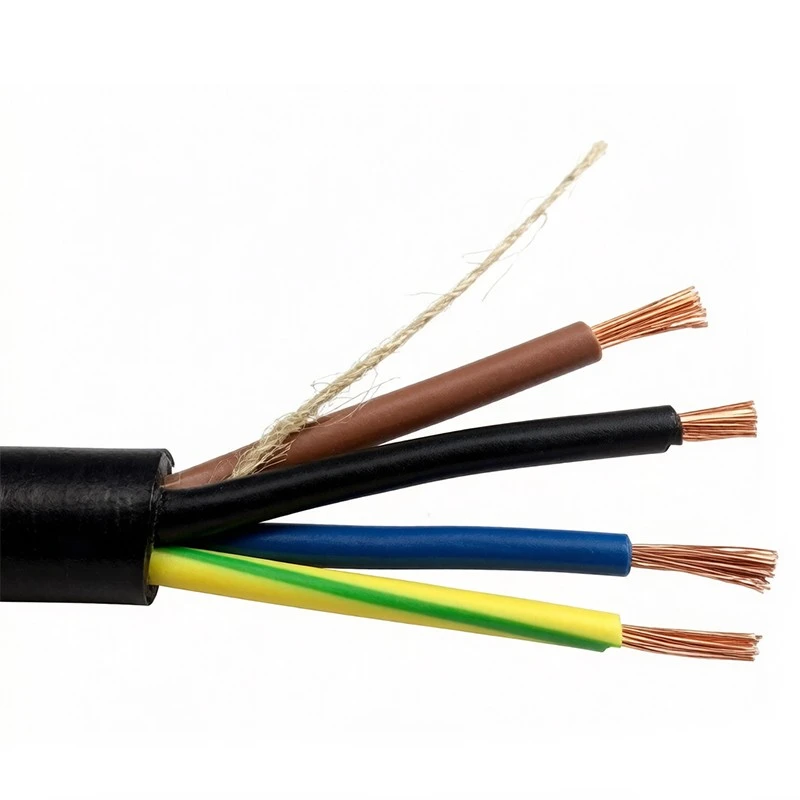

Every industrial facility is exposed to potential fire risks. Our Flame retardant pvc cable is designed with safety as the primary objective. Both the insulation and outer jacket are manufactured using a specially formulated flame-retardant PVC compound.

This material is self-extinguishing, meaning it will stop burning once the ignition source is removed. In addition, it does not produce flaming droplets during combustion. This is a critical safety feature, as molten drips can spread fire to surrounding equipment or structures. The combination of self-extinguishing and non-dripping performance makes this cable suitable for industrial workshops, warehouses, and building installations.

t04fcbbede9cef31fb9

Strong Electrical Performance with Stable Operation

Fire safety performance is achieved without compromising electrical reliability. The conductor is made of high-purity oxygen-free copper, ensuring low resistance, stable conductivity, and reduced heat generation during operation.

The flame-retardant PVC insulation provides high dielectric strength and long-term voltage endurance, with strong resistance to aging. Both shielded and unshielded configurations are available. The shielded version uses a tinned copper braid with coverage ≥85%, providing effective protection against electromagnetic interference (EMI), especially in environments with variable frequency drives (VFDs) and industrial machinery.

Multiple Flame Retardant Grades Available

Our Flame retardant pvc cable is manufactured in compliance with IEC 60332 standards and certified to CE and RoHS requirements. Common models such as ZR-DJYVP, ZR-DJYPVP, ZR-KVV, ZR-RVV, and ZR-YJV are available from stock.

Flame retardant performance is available in Class A, Class B, and Class C grades, allowing selection based on project fire safety requirements. Each production batch undergoes full inspection, including electrical testing, insulation resistance verification, and visual quality control prior to shipment.

For export projects, complete test reports and customs documentation are provided.

Key Specifications

Parameter	Specification
Common Models	ZR-DJYVP, ZR-DJYPVP, ZR-KVV, ZR-RVV, ZR-YJV
Conductor	High-Purity Oxygen-Free Copper / Tinned Copper
Flame Retardant Standard	IEC 60332 (Self-Extinguishing, Non-Dripping)
Flame Retardant Grade	Class A / Class B / Class C
Working Temperature	-30°C ~ +80°C

Frequently Asked Questions

Q: What is the difference between Class A and Class C flame retardant cables?

A: The difference lies in the severity of the flame test conditions and the allowable char height. Class A represents the highest level of flame retardancy, with stricter performance requirements and lower allowable damage in vertical flame testing. Class B offers moderate performance, while Class C is suitable for general industrial applications with lower fire risk requirements. For critical infrastructure such as high-rise buildings, tunnels, and subways, Class A is typically specified. Our production lines can flexibly manufacture all three grades according to project requirements.

Q: What is the warranty period for this cable?

A: We provide a 12-month warranty under normal operating and installation conditions. This covers defects such as insulation failure, jacket cracking, or non-compliance with flame retardant performance specifications. Our quality control system is designed specifically for safety-critical cable applications, and our after-sales team responds to inquiries within 24 hours.
